외치기어 (131/132 시리즈)

  • SLEWING BEARING

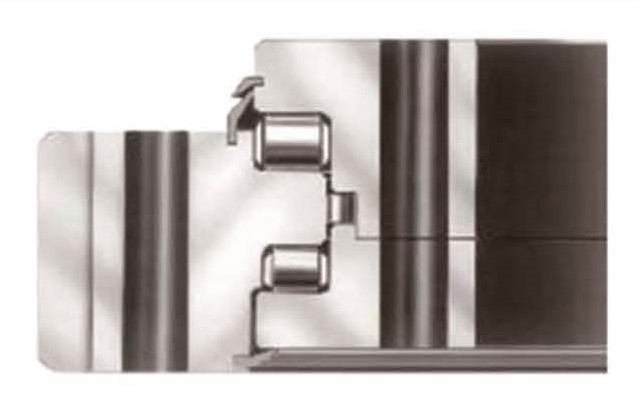

  • 3줄 롤러
  • 외치기어 (131/132 시리즈)

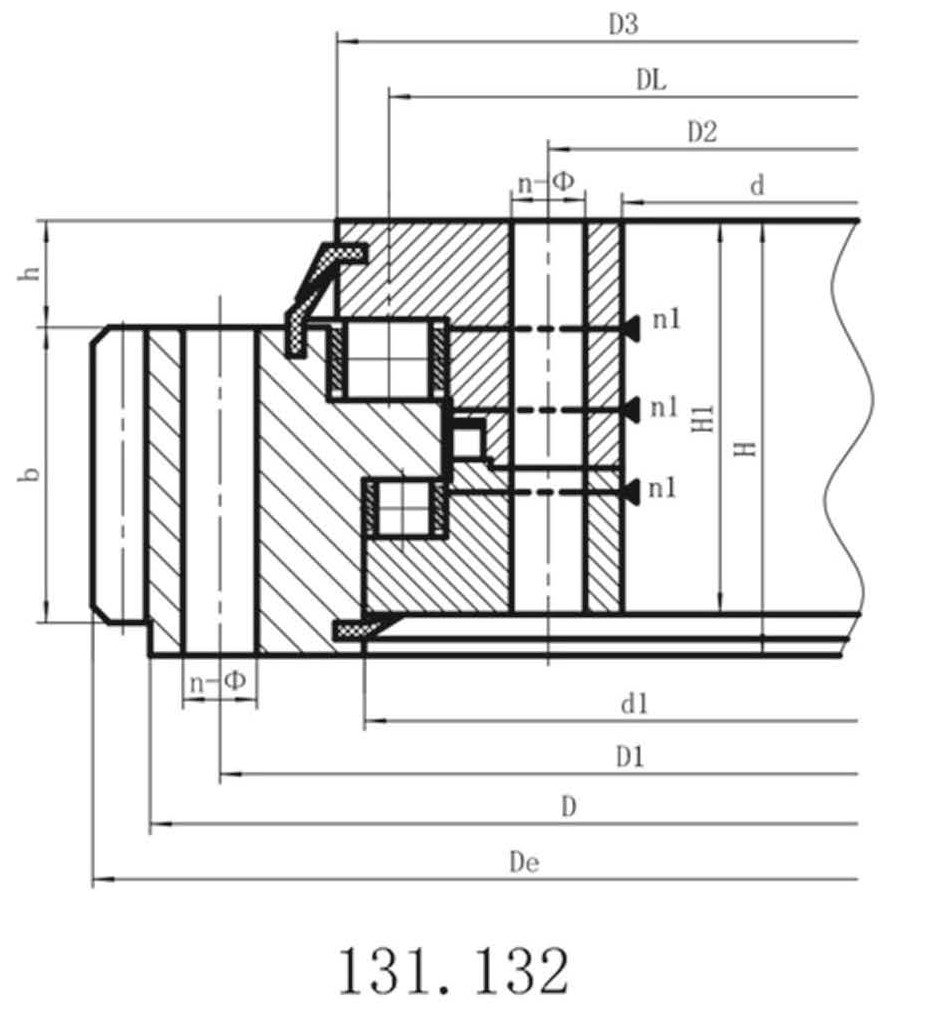

모델명 Dimensions Mounting Dimensions Structural Dimension Gear data Tooth force Weight (kg) 다운로드
D (mm) d (mm) H (mm) D1 (mm) D2 (mm) n Φ (mm) dm (mm) L (mm) n1 D3 (mm) d1 (mm) H1 (mm) h (mm) b (mm) x Module De (mm) z 노멀라이징 Z10⁴N 퀜칭 T10⁴N
131.25.500 634 366 148 598 402 24 18 M16 32 4 537 526 138 32 80 0.5 5 664 130 5 6.7 224
132.25.500 634 366 148 598 402 24 18 M16 32 4 537 526 138 32 80 0.5 6 664.8 108 6 8 224
131.25.560 694 426 148 658 462 24 18 M16 32 4 597 589 138 32 80 0.5 5 724 142 5 6.7 240
132.25.560 694 426 148 658 462 24 18 M16 32 4 597 589 138 32 80 0.5 6 724.8 118 6 8 240
131.25.630 764 496 148 728 532 28 18 M16 32 4 667 656 138 32 80 0.5 6 808.8 132 6 8 270
132.25.630 764 496 148 728 532 28 18 M16 32 4 667 656 138 32 80 0.5 8 806.4 98 8 11 270
131.25.710 844 576 148 808 612 28 18 M16 32 4 747 736 138 32 80 0.5 6 886.8 145 6 8 300
132.25.710 844 576 148 808 612 28 18 M16 32 4 747 736 138 32 80 0.5 8 886.4 108 8 11 300
131.28.800 964 636 182 920 680 36 22 M20 40 4 841 830 172 40 120 0.5 8 1006.4 123 12.1 16.7 500
132.28.800 964 636 182 920 680 36 22 M20 40 4 841 830 172 40 120 0.5 10 1008 98 15.1 20.9 500
131.28.900 1064 736 182 1020 780 36 22 M20 40 4 941 930 172 40 120 0.5 8 1102.4 135 12.1 16.7 600
132.28.900 1064 736 182 1020 780 36 22 M20 40 4 941 930 172 40 120 0.5 10 1108 108 15.1 20.9 600
131.28.1000 1164 836 182 1120 880 40 22 M20 40 5 1041 1030 172 40 120 0.5 10 1218 119 15.1 20.9 680
132.28.1000 1164 836 182 1120 880 40 22 M20 40 5 1041 1030 172 40 120 0.5 12 1221.6 99 18.1 25.1 680
131.28.1120 1284 956 182 1240 1000 40 22 M20 40 5 1161 1150 172 40 120 0.5 10 1338 131 15.1 20.9 820
132.28.1120 1284 956 182 1240 1000 40 22 M20 40 5 1161 1150 172 40 120 0.5 12 1341.6 109 18.1 25.1 820
131.32.1250 1445 1055 220 1393 1107 45 26 M24 48 5 1300 1287 210 50 150 0.5 12 1509.6 123 22.9 31.4 1200
132.32.1250 1445 1055 220 1393 1107 45 26 M24 48 5 1300 1287 210 50 150 0.5 14 1509.2 105 26.3 36.6 1200
131.32.1400 1595 1205 220 1543 1257 45 26 M24 48 5 1450 1437 210 50 150 0.5 12 1665.6 136 22.9 31.4 1300
132.32.1400 1595 1205 220 1543 1257 45 26 M24 48 5 1450 1437 210 50 150 0.5 14 1663.2 116 26.3 36.6 1300
131.32.1600 1795 1405 220 1743 1457 48 26 M24 48 6 1650 1637 210 50 150 0.5 14 1873.2 131 26.3 36.6 1520
132.32.1600 1795 1405 220 1743 1457 48 26 M24 48 6 1650 1637 210 50 150 0.5 16 1868.8 114 30.2 41.7 1520
131.32.1800 1995 1605 220 1943 1657 48 26 M24 48 6 1850 1837 210 50 150 0.5 14 2069.2 145 26.3 36.6 1750
132.32.1800 1995 1605 220 1943 1657 48 26 M24 48 6 1850 1837 210 50 150 0.5 16 2076.8 127 30.2 41.7 1750
131.40.2000 2221 1779 231 2155 1845 60 33 M30 60 6 2055 2033 219 54 160 0.5 16 2300.8 141 32.2 44.5 2400
132.40.2000 2221 1779 231 2155 1845 60 33 M30 60 6 2055 2033 219 54 160 0.5 18 2300.4 125 36.2 50.1 2400
131.40.2240 2461 2019 231 2395 2085 60 33 M30 60 6 2295 2273 219 54 160 0.5 16 2556.8 157 32.2 44.5 2700
132.40.2240 2461 2019 231 2395 2085 60 33 M30 60 6 2295 2273 219 54 160 0.5 18 2552.4 139 36.2 50.1 2700
131.40.2500 2721 2279 231 2655 2345 72 33 M30 60 8 2555 2533 219 54 160 0.5 18 2822.4 154 36.2 50.1 3000
132.40.2500 2721 2279 231 2655 2345 72 33 M30 60 8 2555 2533 219 54 160 0.5 20 2816 138 40.2 55.6 3000
131.40.2800 3021 2579 231 2955 2645 72 33 M30 60 8 2855 2833 219 54 160 0.5 18 3110.4 170 36.2 50.1 3400
132.40.2800 3021 2579 231 2955 2645 72 33 M30 60 8 2855 2833 219 54 160 0.5 20 3116 153 40.2 55.6 3400
131.50.3150 3432 2868 270 3342 2958 72 45 M42 84 8 3213 3196 258 65 180 0.5 20 3536 174 45.2 62.6 5000
132.50.3150 3432 2868 270 3342 2958 72 45 M42 84 8 3213 3196 258 65 180 0.5 22 3537.6 158 49.8 68.9 5000
131.50.3550 3832 3268 270 3742 3358 72 45 M42 84 8 3613 3596 258 65 180 0.5 20 3936 194 45.2 62.6 5680
132.50.3550 3832 3268 270 3742 3358 72 45 M42 84 8 3613 3596 258 65 180 0.5 22 3933.6 176 49.8 68.9 5680
131.50.4000 4282 3718 270 4192 3808 80 45 M42 84 8 4063 4046 258 65 180 0.5 22 4395.6 197 49.8 68.9 6470
132.50.4000 4282 3718 270 4192 3808 80 45 M42 84 8 4063 4046 258 65 180 0.5 25 4395 173 56.5 78.3 6470
131.50.4500 4782 4218 270 4692 4308 80 45 M42 84 8 4563 4546 258 65 180 0.5 22 4901.6 220 49.8 68.9 7320
132.50.4500 4782 4218 270 4692 4308 80 45 M42 84 8 4563 4546 258 65 180 0.5 25 4895 193 56.5 78.3 7320
