SLEWING BEARING

1열 볼타입

2열 볼타입

크로스롤러

3줄 롤러

경하중용

경하중 플랜지형

적용사례

외치기어 (EP61 시리즈)

  • SLEWING BEARING
  • 경하중용
  • 외치기어 (EP61 시리즈)

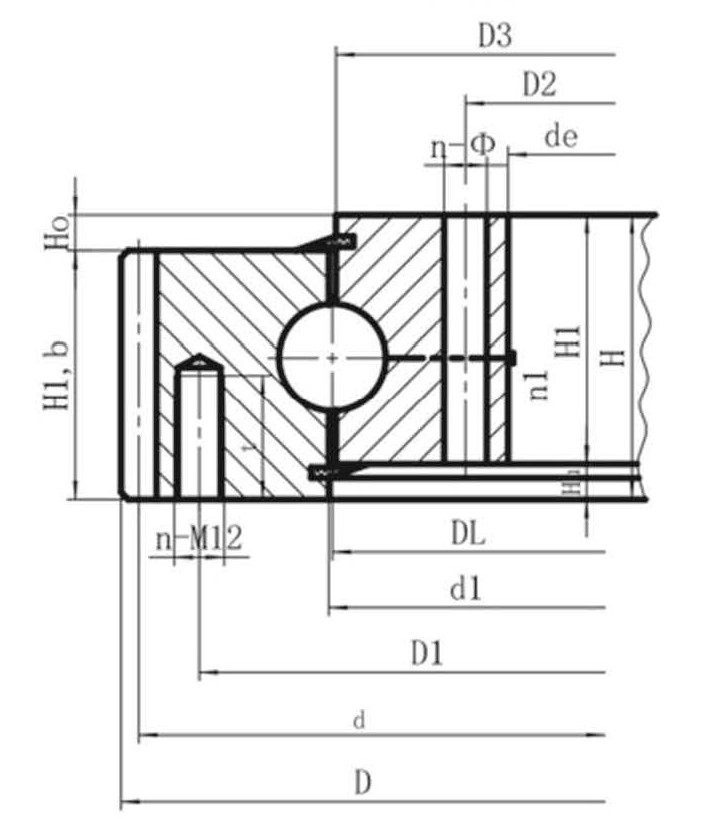

모델명 Dimensions Mounting Dimensions Structural Dimension Gear data Tooth force Axial 클리어런스 Radial 클리어런스 Weight (kg) 다운로드
D (mm) de (mm) H (mm) D1 (mm) D2 (mm) n Φ (mm) M t D3 d1 (mm) H1 (mm) H2 Hu Ho d (mm) m z k.m (mm) b 허용 [KN] 최대 [KN]
EP61.20.0414 504 342 56 455 368 20/24 13.5 12 20 412.5 415.5 45.5 45.5 10.5 10.5 495 5 99 -0.5 45.5 11.75 23.5 <0.28 <0.24 31
