SLEWING BEARING

1열 볼타입

2열 볼타입

크로스롤러

3줄 롤러

경하중용

경하중 플랜지형

적용사례

내치기어 (EP62 시리즈)

  • SLEWING BEARING
  • 경하중용
  • 내치기어 (EP62 시리즈)

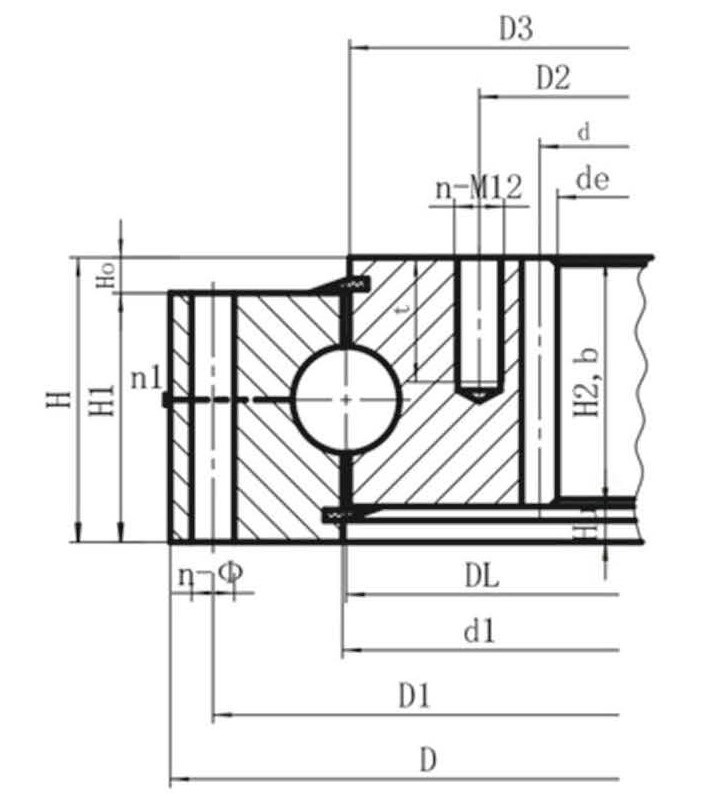

모델명 Dimensions Mounting Dimensions Structural Dimension Gear data Tooth force Axial 클리어런스 Radial 클리어런스 Weight (kg) 다운로드
D (mm) de (mm) H (mm) D1 (mm) D2 (mm) n Φ (mm) M t D3 d1 (mm) H1 (mm) H2 Hu Ho d (mm) m z k.m (mm) b 허용 [KN] 최대 [KN]
EP62.20.0414 486 326.5 56 460 375 24 13.5 12 20 415.5 412.5 45.5 45.5 10.5 10.5 335 5 67 -0.8 45.5 13.54 27.08 <0.28 <0.24 31
EP62.20.0744 816 649.2 56 790 705 40 13.5 12 20 745.5 742.5 45.5 45.5 10.5 10.5 660 6 110 -0.6 45.5 15.32 30.64 <0.30 <0.26 58
EP62.20.0844 916 737.6 56 890 805 40 13.5 12 20 845.5 842.5 45.5 45.5 10.5 10.5 752 8 94 -0.8 45.5 20.8 41.6 <0.30 <0.26 69
EP62.20.0544 616 445.2 56 590 505 32 13.5 12 20 545.5 542.5 45.5 45.5 10.5 10.5 456 6 76 -0.6 45.5 16 32 <0.30 <0.26 42
EP62.20.1094 1166 985.6 56 1140 1055 48 13.5 12 20 1095.5 1092.5 45.5 45.5 10.5 10.5 1000 8 125 -0.8 45.5 20.16 40.32 <0.30 <0.26 91
EP62.20.0644 716 547.2 56 690 605 36 13.5 12 20 645.5 642.5 45.5 45.5 10.5 10.5 558 6 93 -0.6 45.5 15.62 31.24 <0.30 <0.26 50
EP62.20.0944 1016 841.6 56 990 905 44 13.5 12 20 945.5 942.5 45.5 45.5 10.5 10.5 856 8 107 -0.8 45.5 20.49 40.98 <0.30 <0.26 76
