내치기어 (133/134 시리즈)

  • SLEWING BEARING

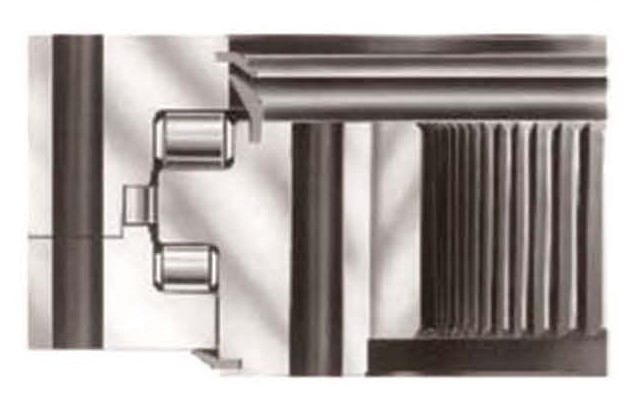

  • 3줄 롤러
  • 내치기어 (133/134 시리즈)

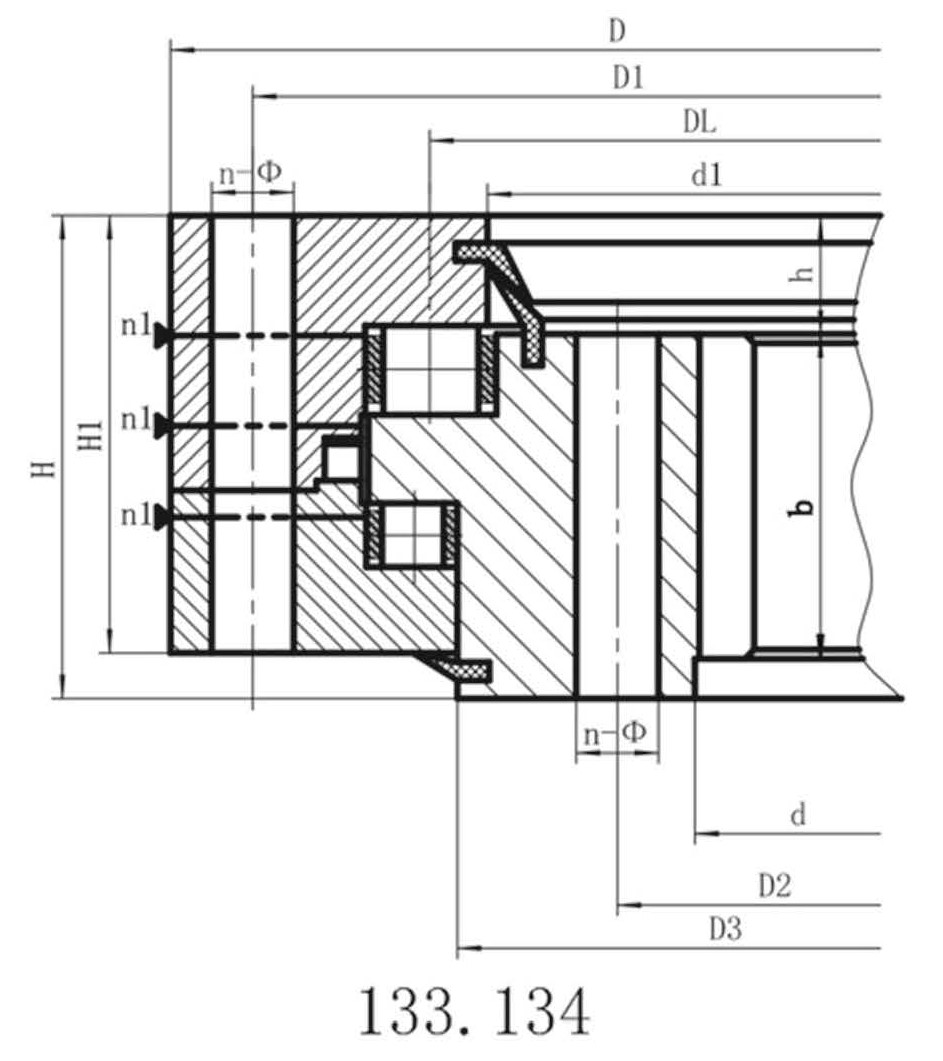

모델명 Dimensions Mounting Dimensions Structural Dimension Gear data Tooth force Weight (kg) 다운로드
D (mm) d (mm) H (mm) D1 (mm) D2 (mm) n Φ (mm) dm (mm) L (mm) n1 D3 (mm) d1 (mm) H1 (mm) h (mm) b (mm) x Module De (mm) z 노멀라이징 Z10⁴N 퀜칭 T10⁴N
133.25.500 634 366 148 598 402 24 18 M16 32 4 474 463 138 32 80 0.5 5 337 68 5 6.7 224
134.25.500 634 366 148 598 402 24 18 M16 32 4 474 463 138 32 80 0.5 6 338.4 57 6 8 224
133.25.560 694 426 148 658 462 24 18 M16 32 4 534 523 138 32 80 0.5 5 397 80 5 6.7 240
134.25.560 694 426 148 658 462 24 18 M16 32 4 534 523 138 32 80 0.5 6 398.4 67 6 8 240
133.25.630 764 496 148 728 532 28 18 M16 32 4 604 593 138 32 80 0.5 6 458.4 77 6 8 270
134.25.630 764 496 148 728 532 28 18 M16 32 4 604 593 138 32 80 0.5 8 459.2 58 8 11 270
133.25.710 844 576 148 808 612 28 18 M16 32 4 684 673 138 32 80 0.5 6 536.4 90 6 8 300
134.25.710 844 576 148 808 612 28 18 M16 32 4 684 673 138 32 80 0.5 8 539.2 68 8 11 300
133.28.800 964 636 182 920 680 36 22 M20 40 4 770 759 172 40 120 0.5 8 595.2 75 12.1 16.7 500
134.28.800 964 636 182 920 680 36 22 M20 40 4 770 759 172 40 120 0.5 10 594 60 15.1 20.9 500
133.28.900 1064 736 182 1020 780 36 22 M20 40 4 870 859 172 40 120 0.5 8 691.2 87 12.1 16.7 600
134.28.900 1064 736 182 1020 780 36 22 M20 40 4 870 859 172 40 120 0.5 10 694 70 15.1 20.9 600
133.28.1000 1164 836 182 1120 880 40 22 M20 40 5 970 959 172 40 120 0.5 10 784 79 15.1 20.9 680
134.28.1000 1164 836 182 1120 880 40 22 M20 40 5 970 959 172 40 120 0.5 12 784.8 66 18.1 25.1 680
133.28.1120 1284 956 182 1240 1000 40 22 M20 40 5 1090 1079 172 40 120 0.5 10 904 91 15.1 20.9 820
134.28.1120 1284 956 182 1240 1000 40 22 M20 40 5 1090 1079 172 40 120 0.5 12 904.8 76 18.1 25.1 820
133.32.1250 1445 1055 220 1393 1107 45 26 M24 48 5 1213 1200 210 50 150 0.5 12 988.8 83 22.9 31.4 1200
134.32.1250 1445 1055 220 1393 1107 45 26 M24 48 5 1213 1200 210 50 150 0.5 14 985.6 71 26.3 36.6 1200
133.32.1400 1595 1205 220 1543 1257 45 26 M24 48 5 1363 1350 210 50 150 0.5 12 1144.8 96 22.9 31.4 1300
134.32.1400 1595 1205 220 1543 1257 45 26 M24 48 5 1363 1350 210 50 150 0.5 14 1139.6 82 26.3 36.6 1300
133.32.1600 1795 1405 220 1743 1457 48 26 M24 48 6 1563 1550 210 50 150 0.5 14 1335.6 96 26.3 36.6 1520
134.32.1600 1795 1405 220 1743 1457 48 26 M24 48 6 1563 1550 210 50 150 0.5 16 1334.4 84 30.2 41.7 1520
133.32.1800 1995 1605 220 1943 1657 48 26 M24 48 6 1763 1750 210 50 150 0.5 14 1531.6 110 26.3 36.6 1750
134.32.1800 1995 1605 220 1943 1657 48 26 M24 48 6 1763 1750 210 50 150 0.5 16 1526.4 96 30.2 41.7 1750
133.40.2000 2221 1779 231 2155 1845 60 33 M30 60 6 1967 1945 219 54 160 0.5 16 1702.4 107 32.2 44.5 2400
134.40.2000 2221 1779 231 2155 1845 60 33 M30 60 6 1967 1945 219 54 160 0.5 18 1699.2 95 36.2 50.1 2400
133.40.2240 2461 2019 231 2395 2085 60 33 M30 60 6 2207 2185 219 54 160 0.5 16 1926.4 121 32.2 44.5 2700
134.40.2240 2461 2019 231 2395 2085 60 33 M30 60 6 2207 2185 219 54 160 0.5 18 1933.2 108 36.2 50.1 2700
133.40.2500 2721 2279 231 2655 2345 72 33 M30 60 8 2467 2445 219 54 160 0.5 18 2185.2 122 36.2 50.1 3000
134.40.2500 2721 2279 231 2655 2345 72 33 M30 60 8 2467 2445 219 54 160 0.5 20 2188 110 40.2 55.6 3000
133.40.2800 3021 2579 231 2955 2645 72 33 M30 60 8 2767 2745 219 54 160 0.5 18 2491.2 139 36.2 50.1 3400
134.40.2800 3021 2579 231 2955 2645 72 33 M30 60 8 2767 2745 219 54 160 0.5 20 2488 125 40.2 55.6 3400
133.50.3150 3432 2868 270 3342 2958 72 45 M42 84 8 3104 3090 258 65 180 0.5 20 2768 139 45.2 62.6 5000
134.50.3150 3432 2868 270 3342 2958 72 45 M42 84 8 3104 3090 258 65 180 0.5 22 2758.8 126 49.8 68.9 5000
133.50.3550 3832 3268 270 3742 3358 72 45 M42 84 8 3504 3490 258 65 180 0.5 20 3168 159 45.2 62.6 5680
134.50.3550 3832 3268 270 3742 3358 72 45 M42 84 8 3504 3490 258 65 180 0.5 22 3154.8 144 49.8 68.9 5680
133.50.4000 4282 3718 270 4192 3808 80 45 M42 84 8 3954 3940 258 65 180 0.5 22 3116.8 165 49.8 68.9 6470
134.50.4000 4282 3718 270 4192 3808 80 45 M42 84 8 3954 3940 258 65 180 0.5 25 3610 145 56.5 78.3 6470
133.50.4500 4782 4218 270 4692 4308 80 45 M42 84 8 4454 4440 258 65 180 0.5 22 4122.8 188 49.8 68.9 7320
134.50.4500 4782 4218 270 4692 4308 80 45 M42 84 8 4454 4440 258 65 180 0.5 25 4110 165 56.5 78.3 7320
